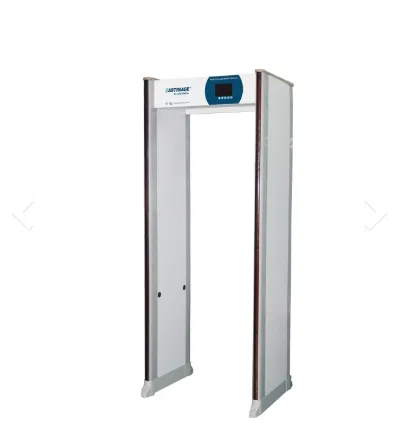

EastImage's Walkthrough Metal Detectors
1) EI-MD3000C Door Frame Metal Detector
- Technology Features:
- High detection sensitivity for the magnetic metal, non-magnetic metal and alloy.
- Self-diagnostic program, power-on self-test, modular structure, multi-language selection, the system automatically wake up.
- Highly integrated DSP digital processing technology, no need tools to adjust, performance is more stable, more convenient after-sales service.
- 33 detection zones each area can set sensitivity alone.
- Has 300 effective sensitivity.
- High-brightness color LCD; display function of power-on diagnose.
- 30 preset detection program.
- 100 optional frequency.
- Real-time monitor of background environment interference.
| Size/Weight | 2230mm (L)*820mm (W)*550mm (H)/65KG |
| Tunnel Size | 2000mm (L)*710mm (W)*500mm (H) |
| Power Supply | External power adapter, AC100-240V/50-60HZ |
| Power Consumption | <15W |
| Working Temperature | 20℃~+50℃ |
2) EI-MD3000D Walk-through Metal Detection System
- Technology Features
- There are 100 working frequency choose and strong anti-interference.
- Very stable performance with digital pulse technology.
- Modular design for easy installation and disassembly. Automatic sleep.
- Automatically power on , self test, environment adaptive.
- 7-inch color screen, display mode optional.
- 45 Independent Zones.
- 30 application modes to choose from.
- Sensitivity level: free to detect a dime, no blind zone.
| Size/Weight | 2240mm (L)*855mm (W)*600mm (H)/About 55KG |
| Tunnel Size | 1980mm (L)*765mm (W)*600mm (H) |
| Power Supply | DC 15V/5A |
| Power Consumption | <15W |
| Working Temperature | -28℃~+47℃ |
3) EI-MD3000A Arch Way Metal Detector Gate
- Technology Features
- High detection sensitivity for the magnetic metal, non-magnetic metal and alloy.
- Self-diagnostic program, power-on self-test, modular structure, multi-language selection, the system automatically wake up.
- Highly integrated DSP digital processing technology, no need tools to adjust, performance is more stable, more convenient after-sales service.
- 24 detecting area, each area can set sensitivity alone.
- Has 300 effective sensitivity.
- High-brightness color LCD; display function of power-on diagnose.
- 30 preset detection program.
- 100 optional frequency.
- Real-time monitor of background environment interference.
| Size/Weight | 2230mm (L)*820mm (W)*550mm (H)/65KG |
| Tunnel Size | 2000mm (L)*710mm (W)*500mm (H) |
| Power Supply | External power adapter, AC100-240V/50-60HZ |
| Power Consumption | <15W |
| Working Temperature | 20℃~+50℃ |
4) EI-MD2000A Standard Walk-through Metal Detector Gate
EI-MD2000A high sensitivity digital walkthrough metal detector use excellent electromagnetic testing and digital processing technology, has high detection sensitivity of the magnetic metal and nonmagnetic metal, and good recognition for personal items such as coins, keys, belt buckle, etc.
multi-layered overlapping coil design, with high-brightness LEDs to show the horizontal position of metal objects accurately, which can be easy for operator to make judgment.
| Size/Weight | 2230mm (L)*830mm (W)*580mm (H)/65KG |
| Tunnel Size | 2000mm (L)*710mm (W)*500mm (H) |
| Power Supply | External power adapter, AC85-264V/47.5-60HZ |
| Power Consumption | <15W |
| Working Temperature | -20℃~+50℃ |
| Detection Sensitivity | 6 detecting area, with high-brightness LED alarm, Precise positioning the location of hiding contraband. |
| Sensitivity Level | 255 level adjustable for each detecting area |
| Frequency Setup | 100 optional working frequency |
| Operation Authorization | Password protection allows only authorized personnel operate |
| Throughput | 100 people/min |
5) Applications
- Public Entertainment Places
- Public Security System
- Government Office
- Conference Center
- Tourist Places
- Border Crossing
